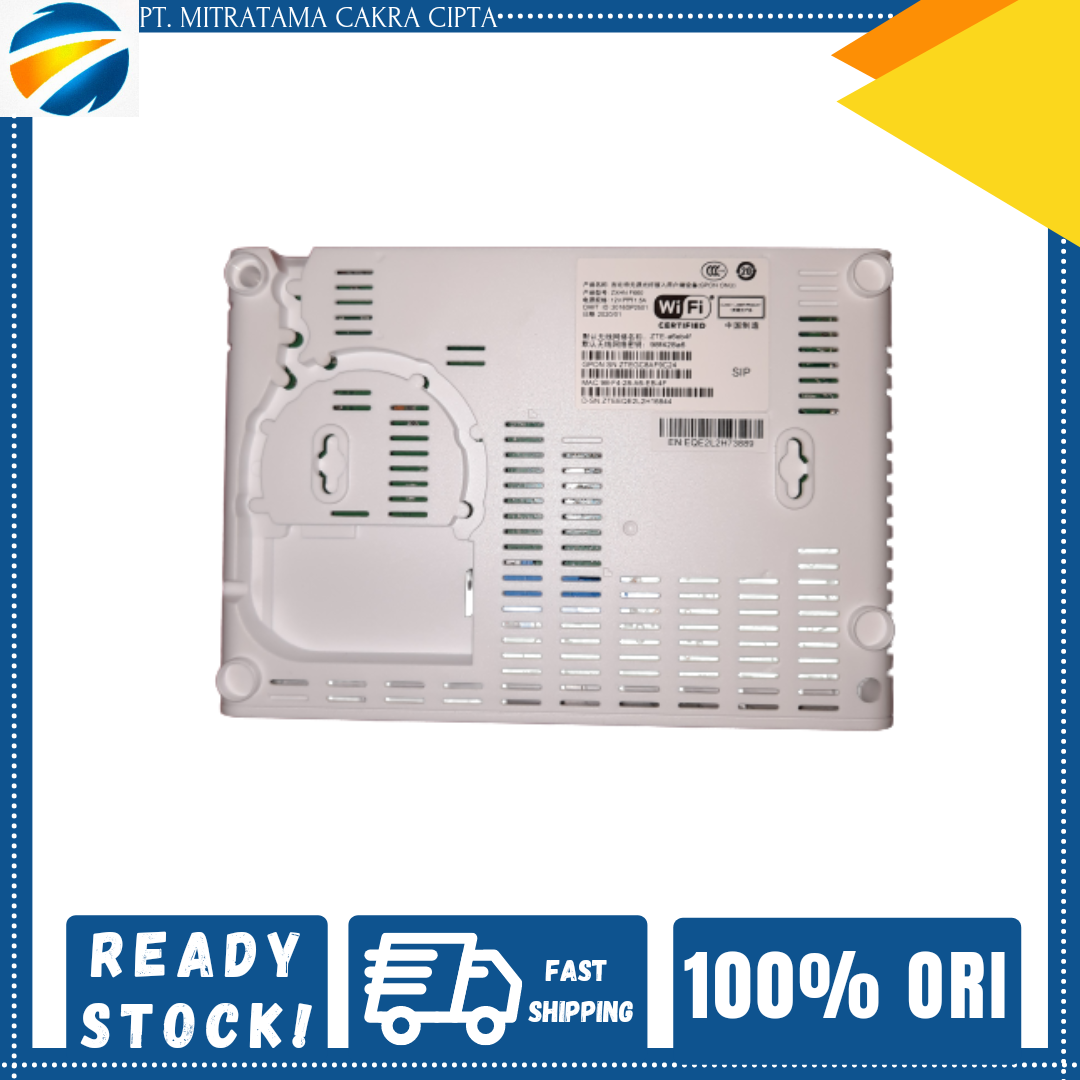

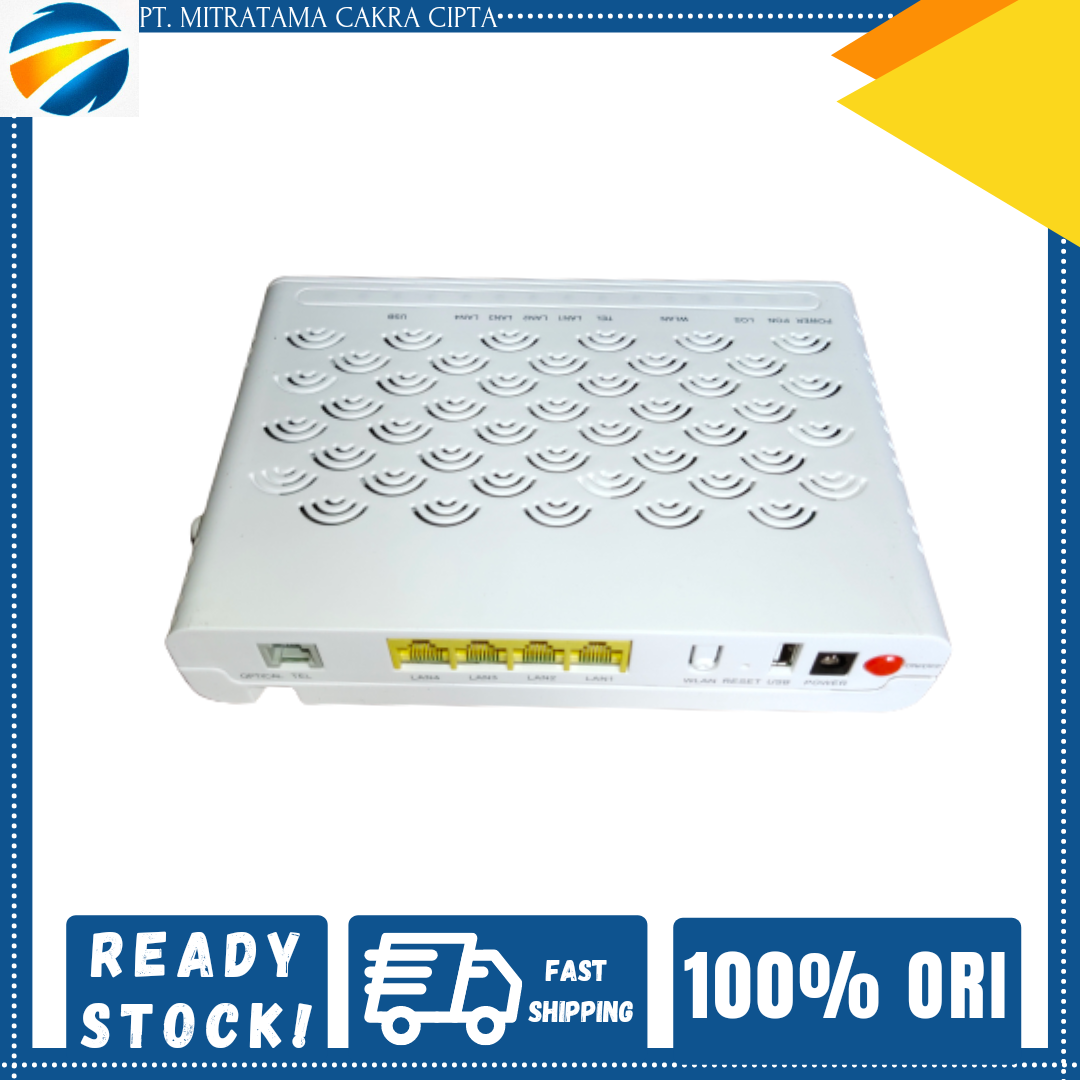

ZTE F660 V5.0
ZTE F660 V5.0 GPON ONU 1GE+3FE+WIFI4 (HGU) with adapter for FTTH
Product Description
ZTE F660 V5.0 1GE+3FE+1USB+WiFi4 GPON ONU BARU
-with 1 power adapter
Technical items
GPON Compliance
ITU-T G.984.x GPON standards
1.244Gbps burst mode upstream, 2.488Gbps downstream
Upstream 1310nm, Downstream 1490nm
Output optical power: Min 0.5dBm,Max +5dBm
Receiver sensitivity: Better than -28dBm
Wireless
Frequency: 2.4 GHz
IEEE 802.11b/g/n
128 bits WEP data encryption
WPA/WPA2 (Wi-Fi Protected Access) Security
WPS (Wireless Protected Setup)
WMM(Wi-Fi Multi Media)
Max 4 Broadcast/hide SSIDs
Max 128 users one SSID
VoIP
SIP/ H.248/ MGCP
DTMF Dialing / DTMF Digits
5-REN, balanced ring, 55V RMS
Codec: G.711 (?-law and A-law), G.726, G.729, G.723.1
32 ms echo cancellation
VAD/CNG
IN-BAND method
DTMF encoding by RFC 2833
T.38/T.30 FAX
Caller ID/ Call Waiting/ Call Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/ Distinctive Ringing
USB
File sharing
USB Fast Recovery
Profile quick backup
DLNA DMS
USB 2.0, full speed, high speed
Router
IPv6 / IPv4 Dual Stack
NAT/ SNTP
ALG
Static routing, and dynamic routing in RIPV1/V2
PPPoE Client/Pass Through
DNS Client/Server
IGMP v1/ v2/ v3
IGMP proxy/snooping
Firewall/Security
Traffic filtering based on UNI port, VLAN ID, 802.1p?UNI+802.1p or VLAN+802.1p
DOS attack defending
MAC address filtering
BUM(Broadcast, Unicast, Multicast) attack protection
Limit MAC address per UNI port or per ONT
Broadcast packages rate limit
AES-128
Broadcast storm suppression
QoS
Rate limitation
Classifying upstream traffic into VLANs with various Ethernet priorities
Marking Ethernet priority based on DSCP value
Ingress rate limit/ Egress shaping
SP/WRR/SP+WRR
Management
TR-069 remote management
Local WEB and telnet management
Local built-in diagnostic Function
Logs and statistics
Loop back function
OMCI management
Hardware Specifications

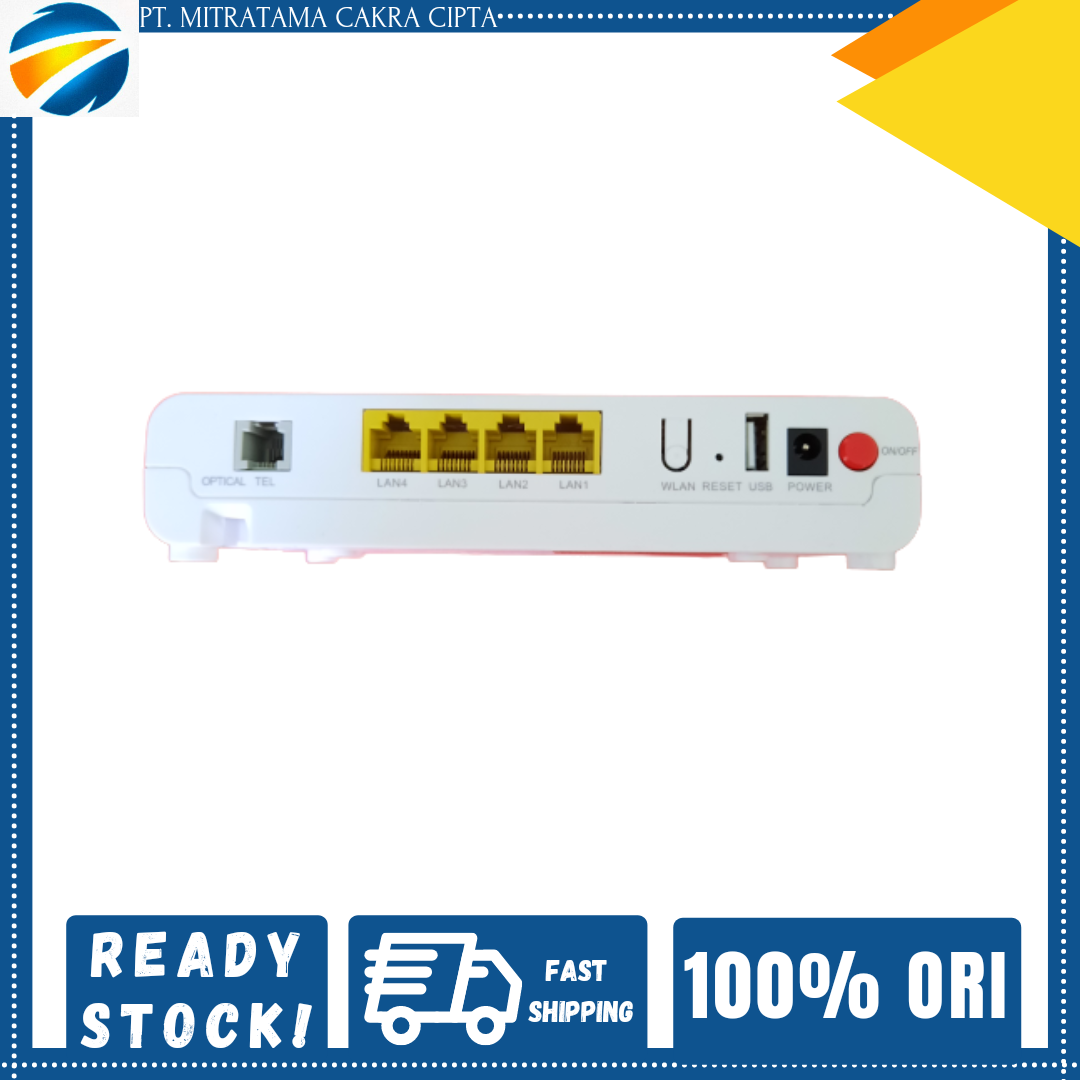

WAN: One SC/APC port for GPON
LAN: Four RJ-45 ports for Gigabit Ethernet interfaces
FXS: Two RJ-11 ports for VoIP
USB: Two
