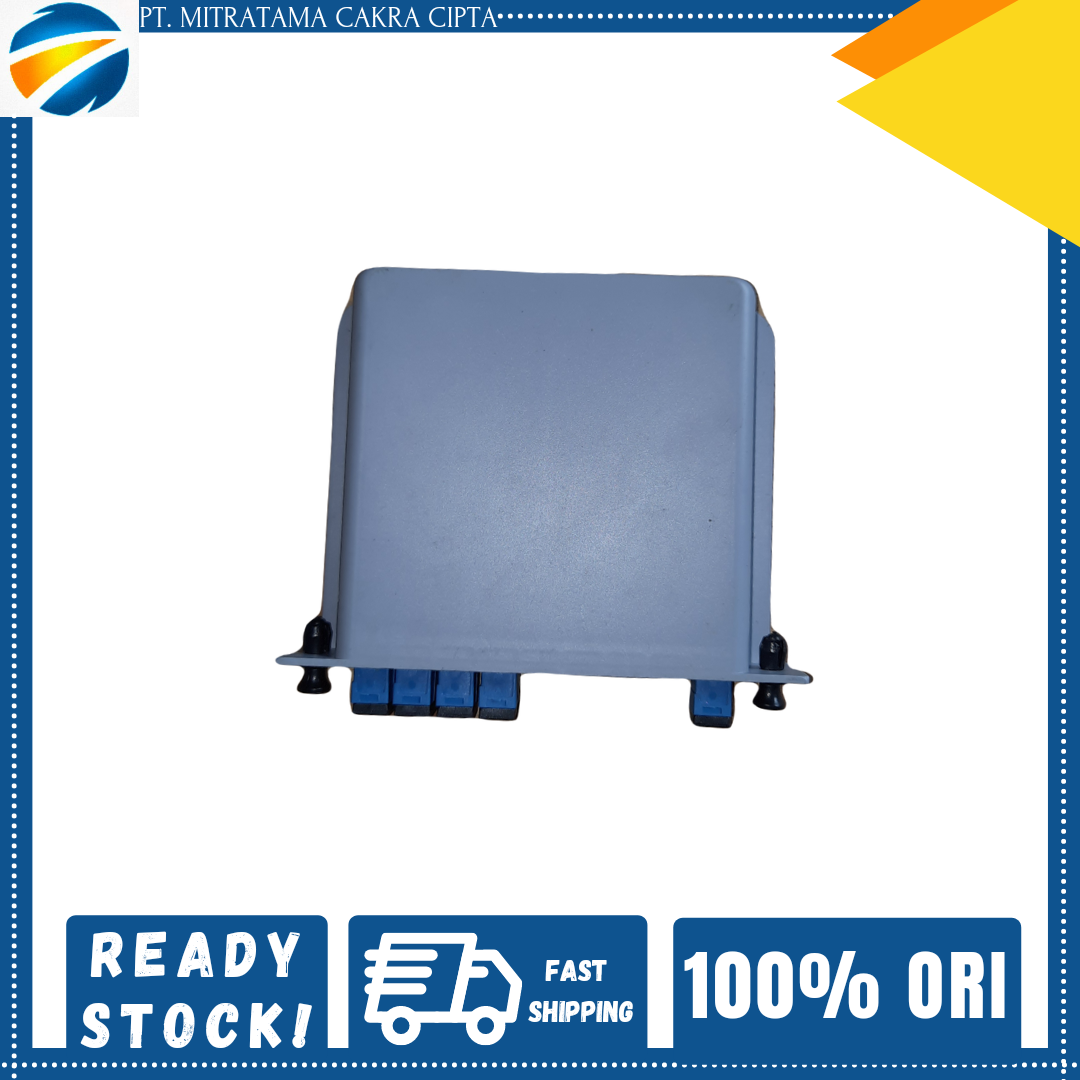

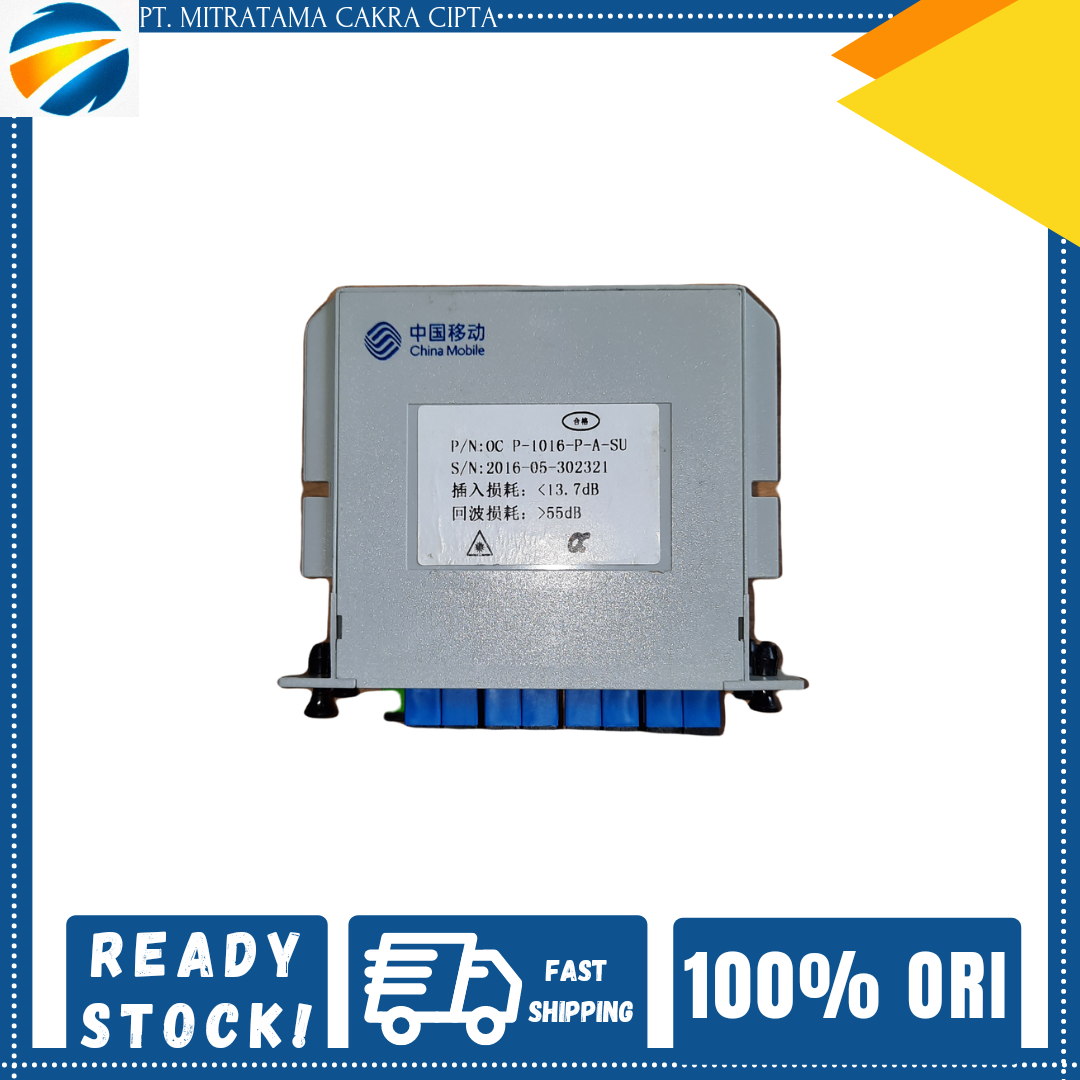

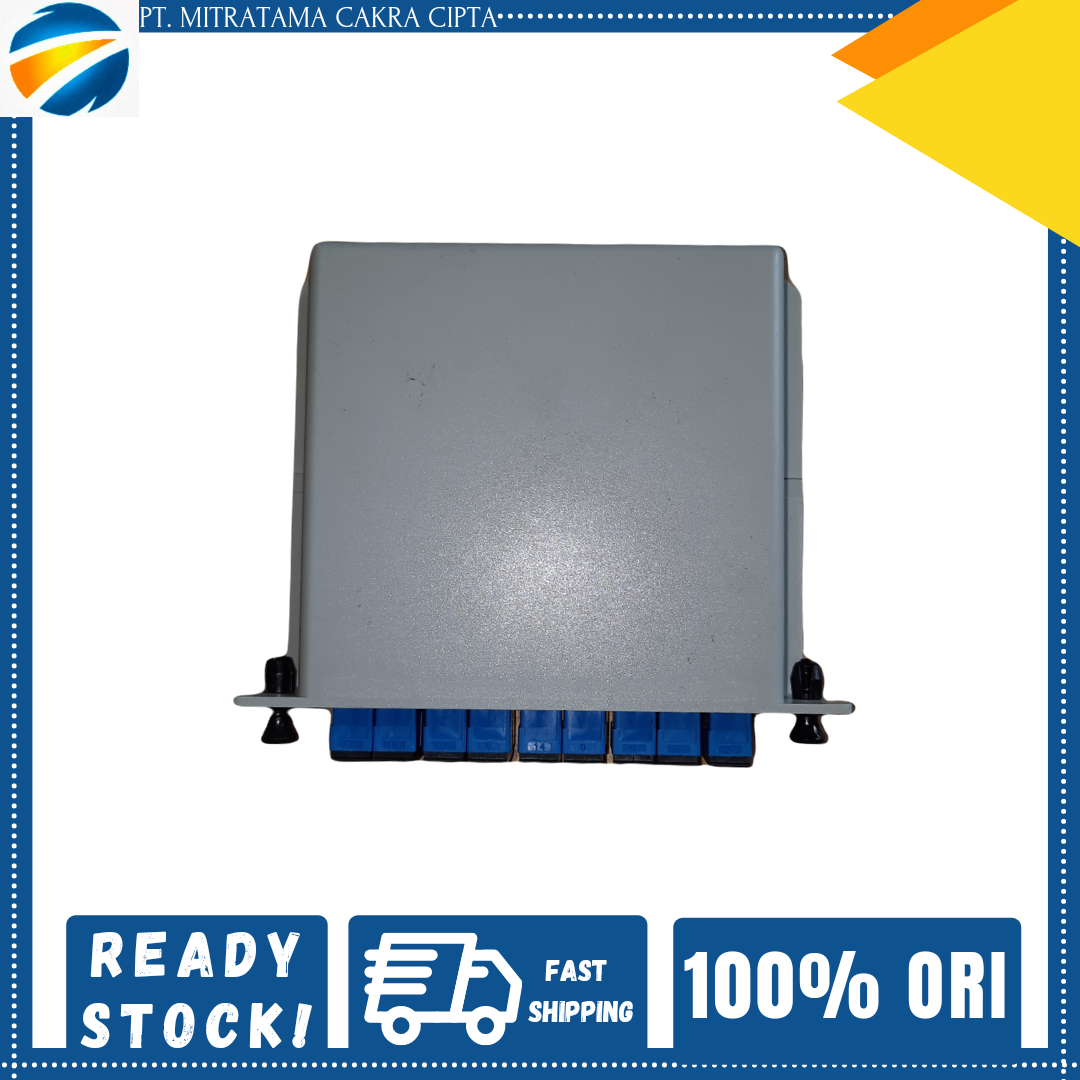

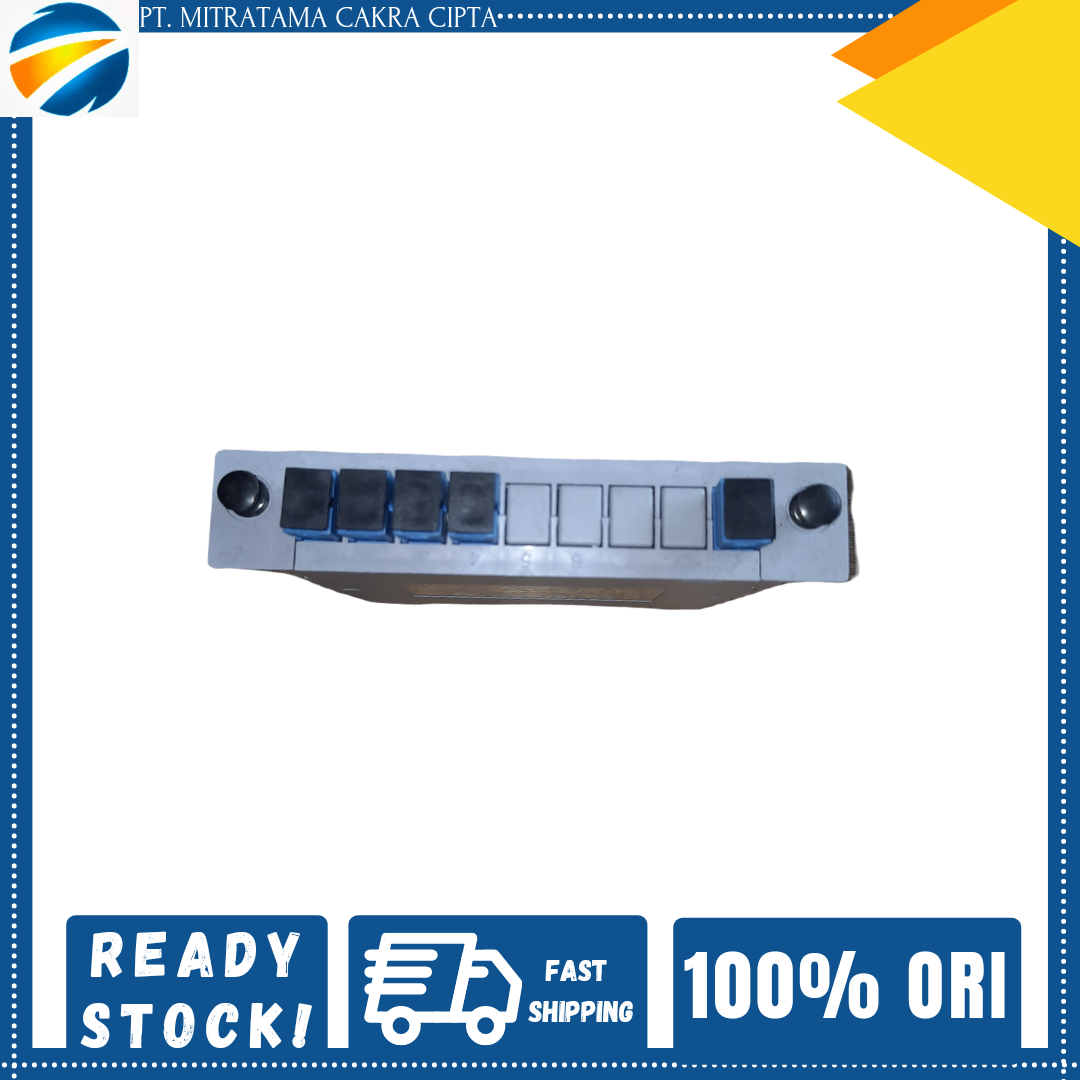

Splitter Passive Box

Product Description

1. Description.
Optional Connectors: SC UPC
Optional Fiber: G652,G657 with the OD:2.0/3.0 mm
Planar lightwave circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical wave guide technology.
it features small size, high reliability, wide oprating wavelength range and good channel to channel uniformity, and is widely used in PON network to realize optical signal power splitting. Sping provides whole series of 1*N and 2*N splitter products that are tailored for sprcific applications.All products meet Telcordia 1209 and 1221 requirments and are certified by TLC for network deployment.

2. Features of
*Low Insertion loss
*Low PDL
*Compact Design
*Good channel-to-channel uniformity
*Wide Operating Wavelength: 1260-1650nm
*Wide Operating Temperature: -40C - 85C
*High Reliability and Stability

3. Applications
*FTTX Systems
*PON Networks
*CATV Links
*Optical Signal Distribution

4. Specifications
wavelength(nm): 1260-1650
Parameters: 1x8
insertion loss (dB):10.7
PDL (dB): 0.3
Uniformity (dB): 0.8
return loss (dB): 50
directivity (dB): 55
temperature range (C): -40~+75
storage temperature (C): -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector,
insertion loss will reduce by 0.2dB.

Package Includes:

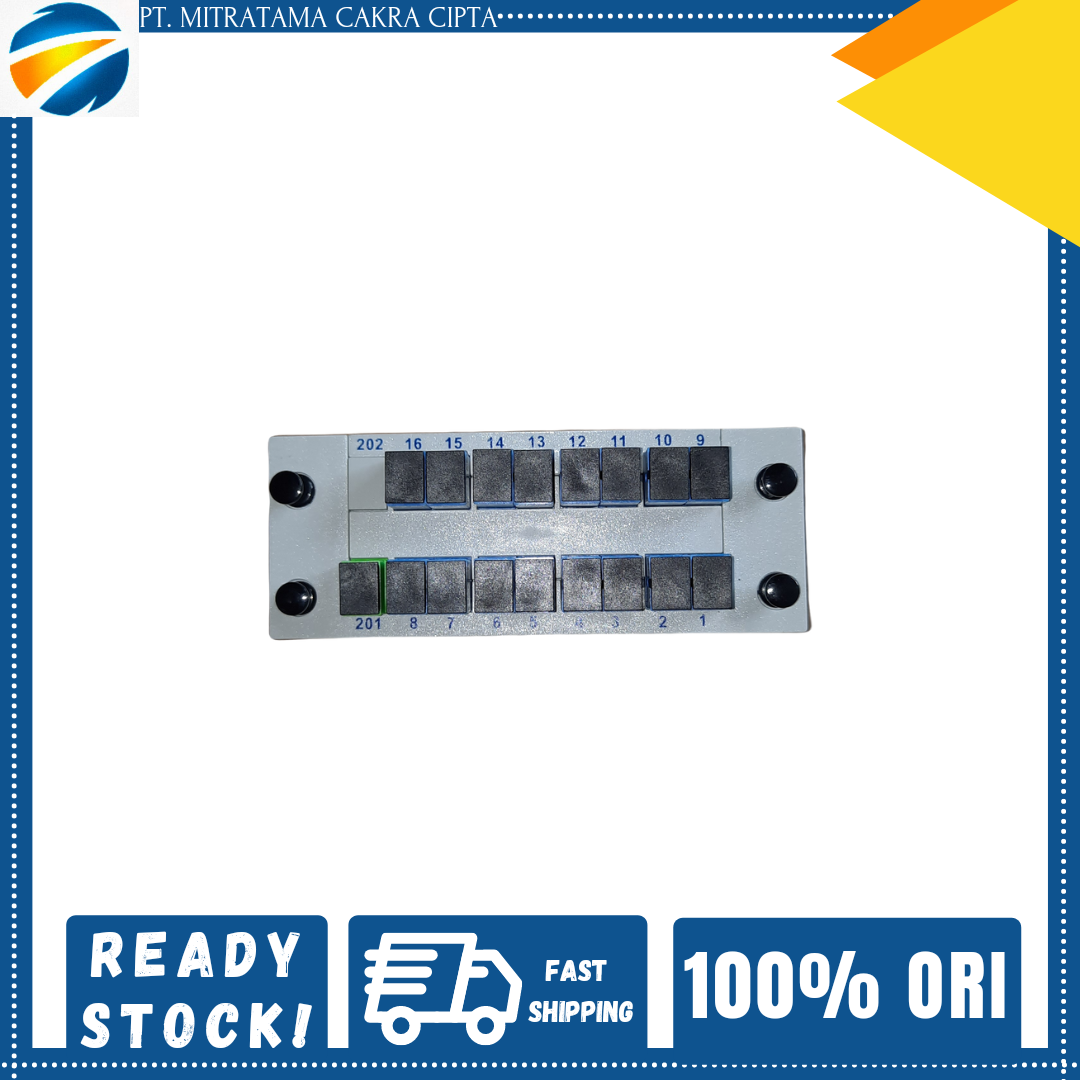

1x SC UPC PLC 1 x 16 Optical Terminal Box
