Product Description

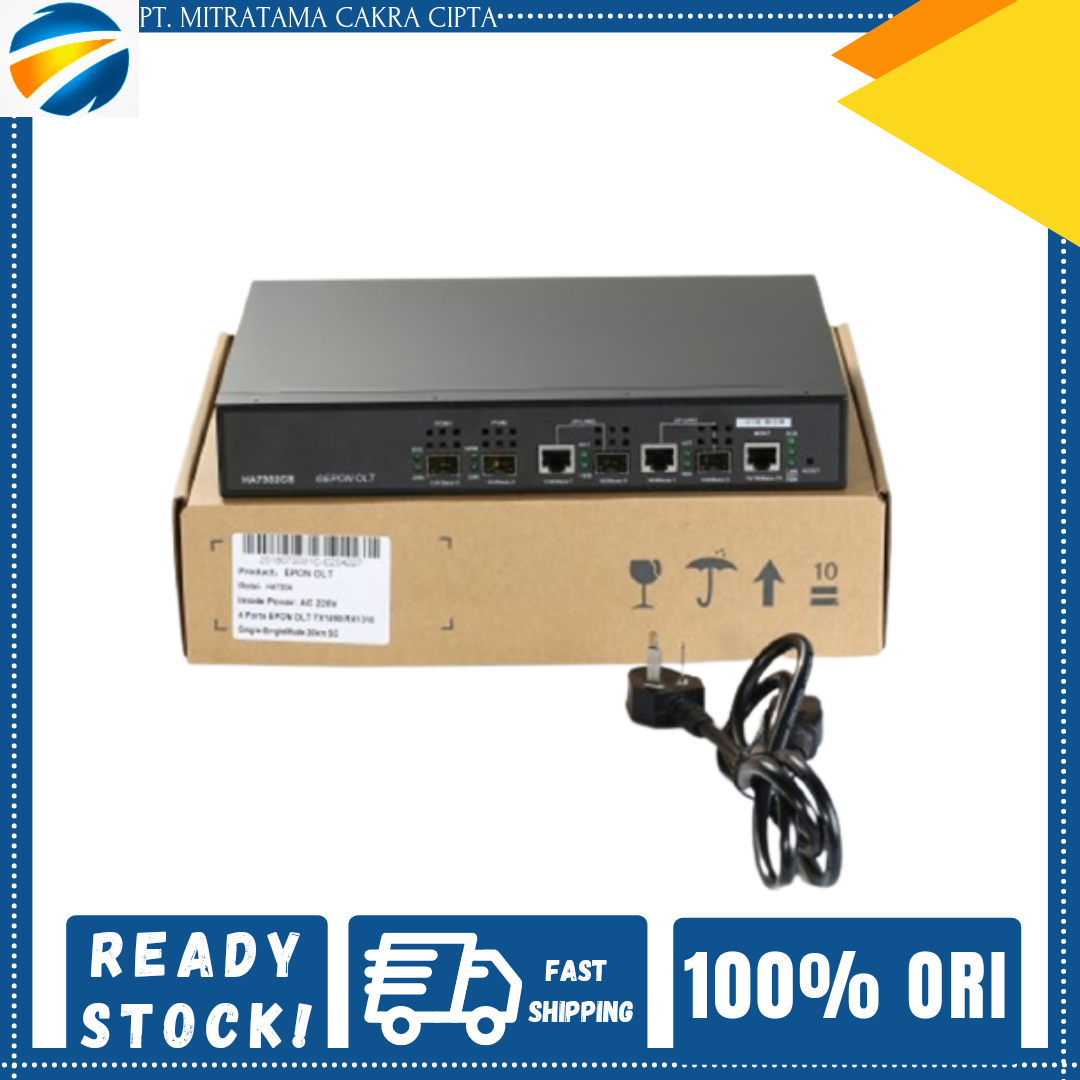

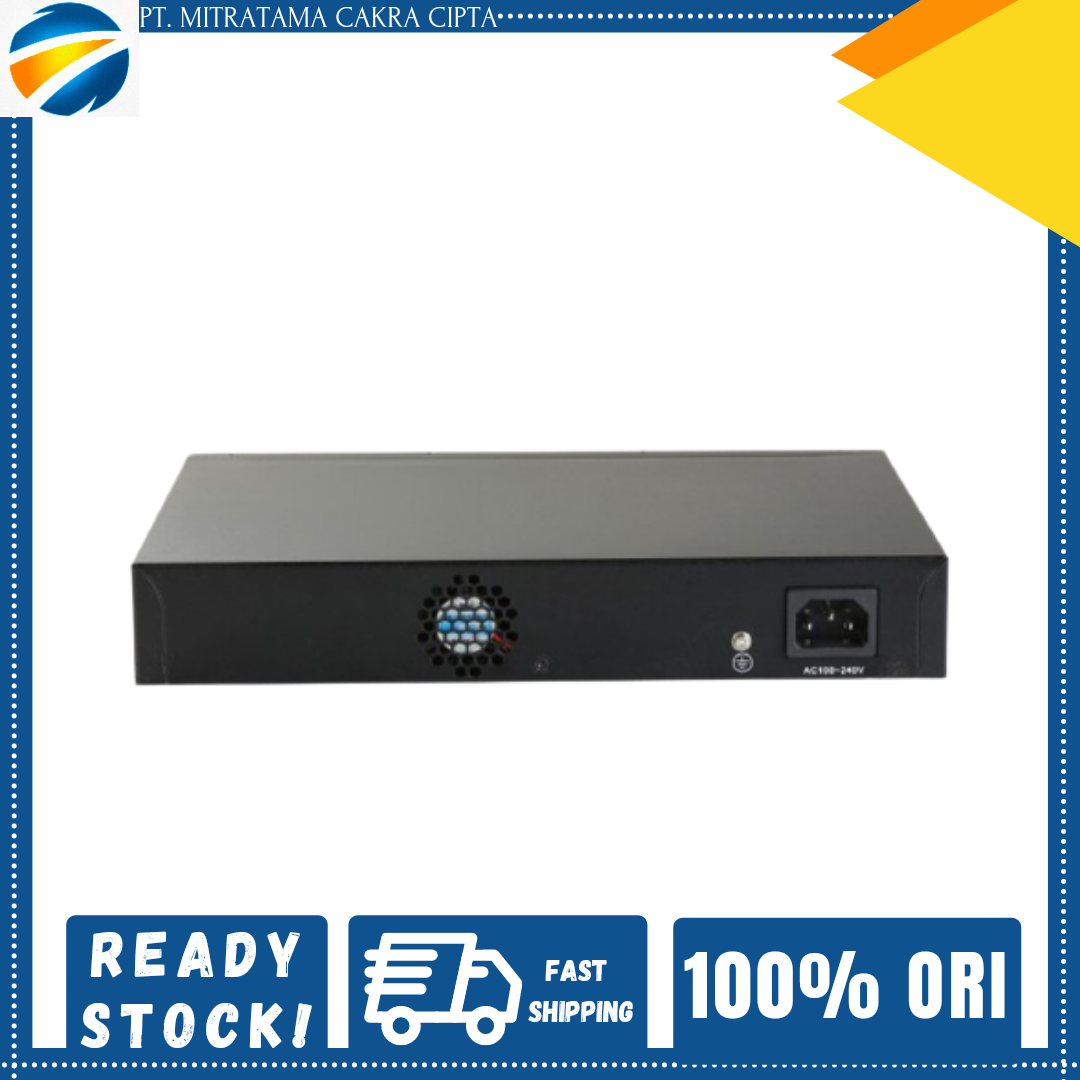

HA7302CS is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, gratis 2pcs PX20+++ 7db SFP, to establish a passive optic network. It supports 2-PON, 64 ONUs access. It supports 10?20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports SNMP management
arameter Specifications
Operating
wavelength
1310?RX?/1490?TX?
Optical power +0 ~ +3dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port 2 SC fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours
EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time
operation)
Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc
