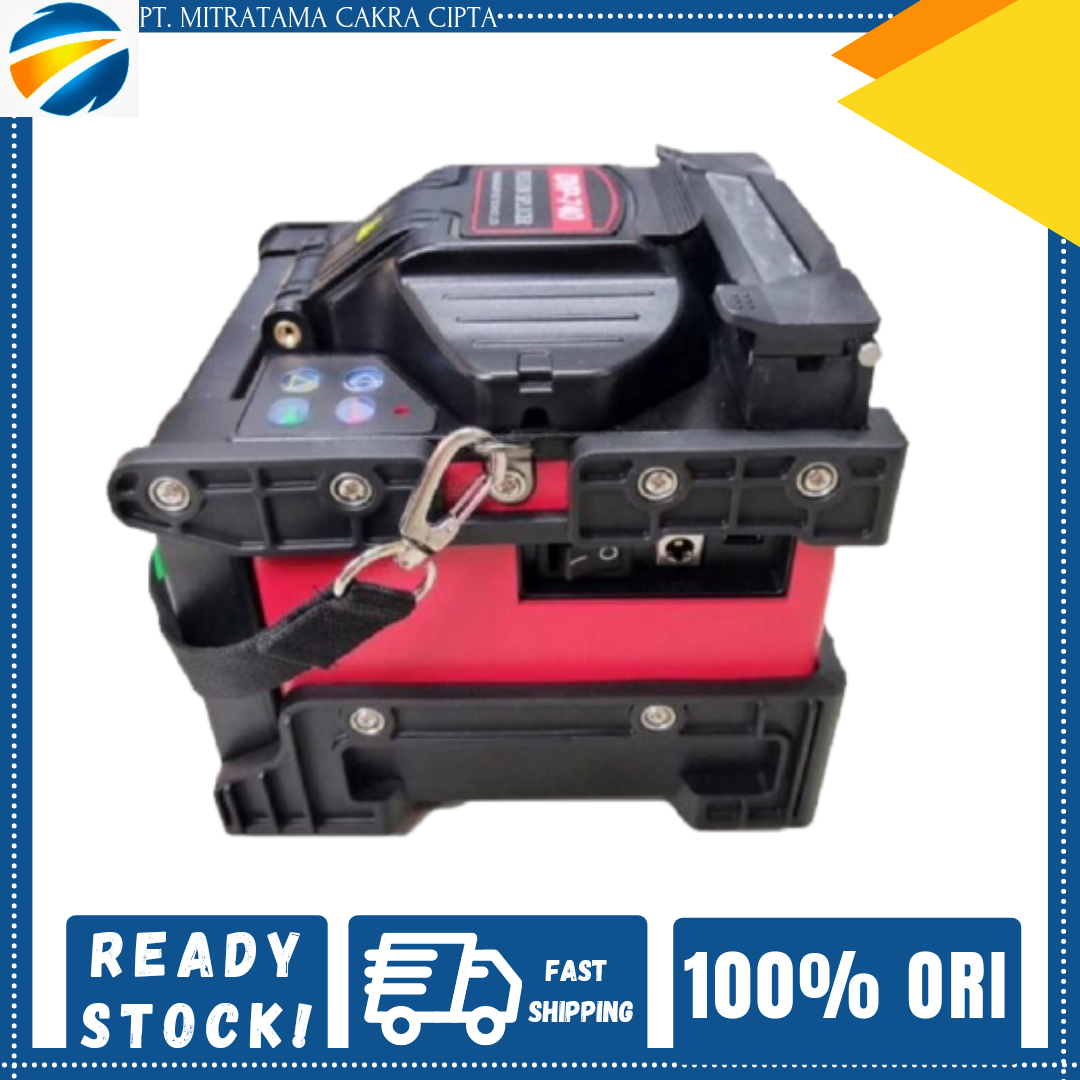

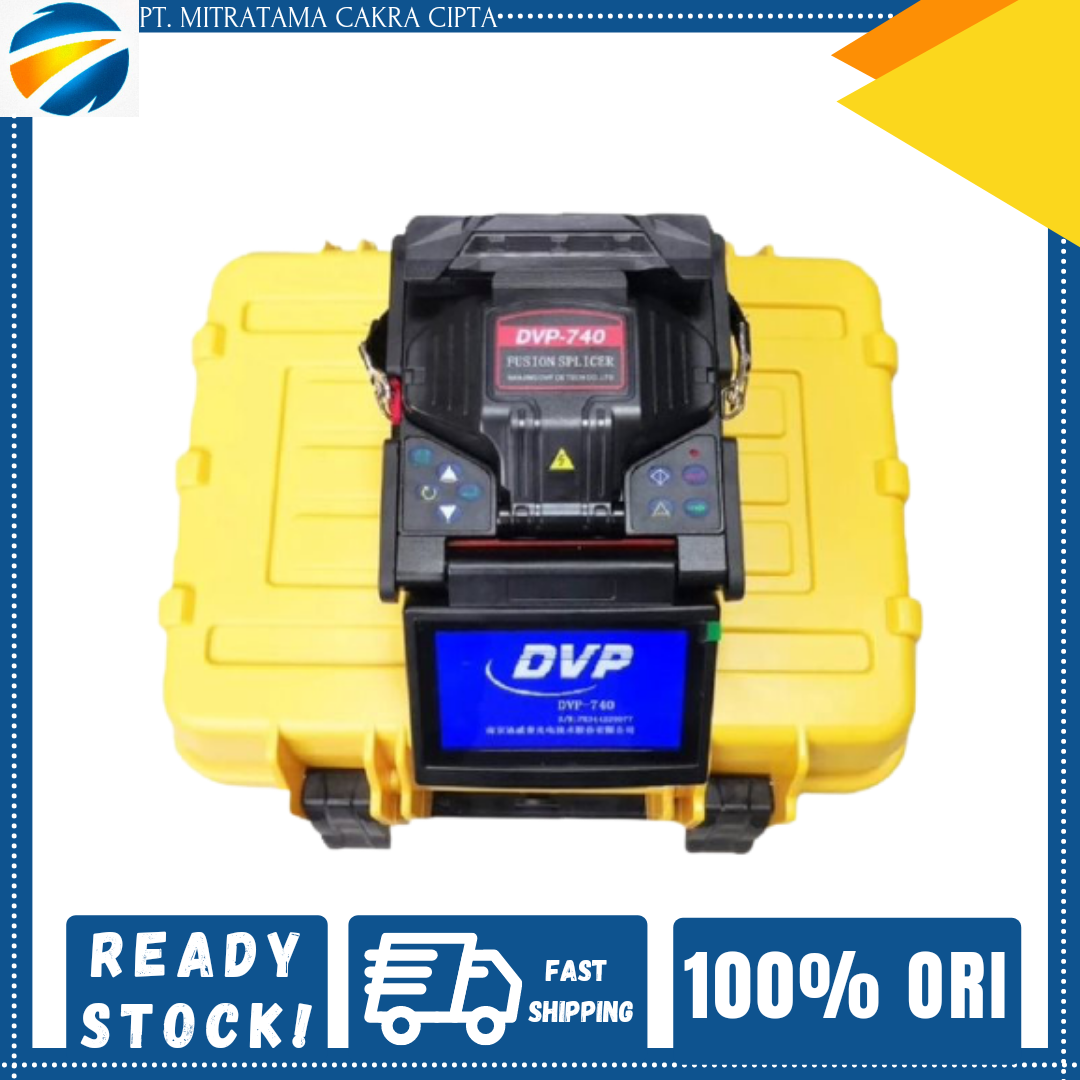

Fiber Optic Splicer DVP740
Features
Compact & Light weight
Applied for Fibers, Cables and SOC (splice- on connector)
Integrated Holder Design
Fully Automatic, Semi-automatic and Manual Operation
Shockproof, Drop resistance
Power saving Function
4.3 inch Color LCD monitor
USB&DC interface
Parameters
Applicable fibers
SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.
Fiber cleaved length
8-22mm
Average splice loss
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss
?60dB
Tension test
2.0N(200gf)(Standard)
Protection sleeve length
20mm, 40mm, 60mm
Splice Program
5 groups of preset programs, 75 group of manual setting
Language
Bahasa Indonesia, English, Chinese, Russian, Spanish, Portuguese.
Environment conditions
-25~+50 degree (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment
-40~ +80 degree (temperature) , 0~95%RH (humidity)
Power supply
AC adaptor: 5~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight
142(L)×122(W)×138(H)mm/1.95kg
Product Description
Features
Compact & Light weight
Applied for Fibers, Cables and SOC (splice- on connector)
Integrated Holder Design
Fully Automatic, Semi-automatic and Manual Operation
Shockproof, Drop resistance
Power saving Function
4.3 inch Color LCD monitor
USB&DC interface
Parameters
Applicable fibers
SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.
Fiber cleaved length
8-22mm
Average splice loss
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss
?60dB
Tension test
2.0N(200gf)(Standard)
Protection sleeve length
20mm, 40mm, 60mm
Splice Program
5 groups of preset programs, 75 group of manual setting
Language
Bahasa Indonesia, English, Chinese, Russian, Spanish, Portuguese.
Environment conditions
-25~+50 degree (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment
-40~ +80 degree (temperature) , 0~95%RH (humidity)
Power supply
AC adaptor: 5~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight
142(L)×122(W)×138(H)mm/1.95kg
